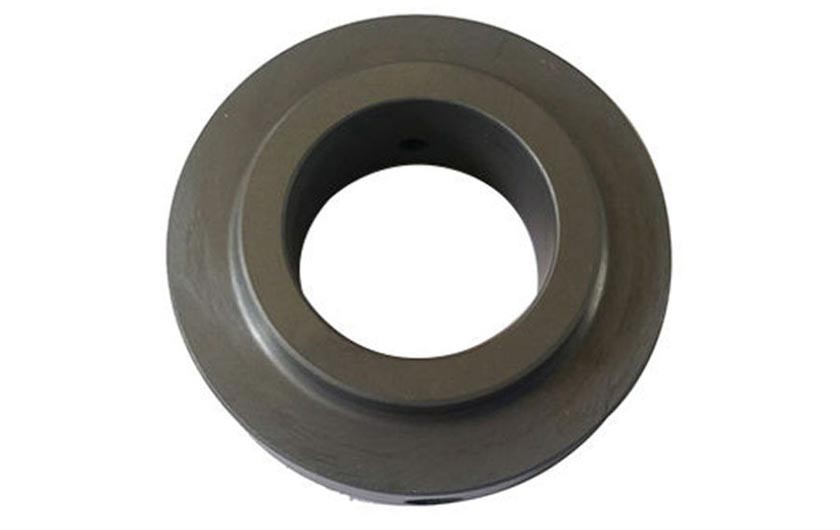

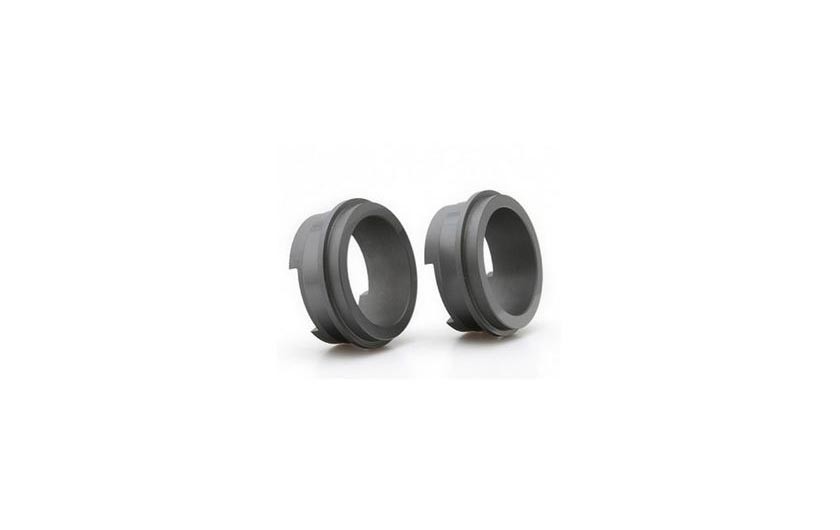

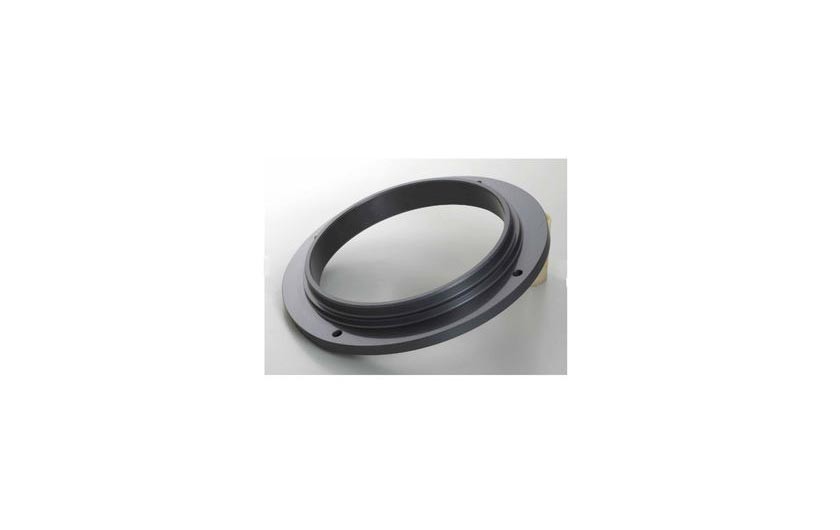

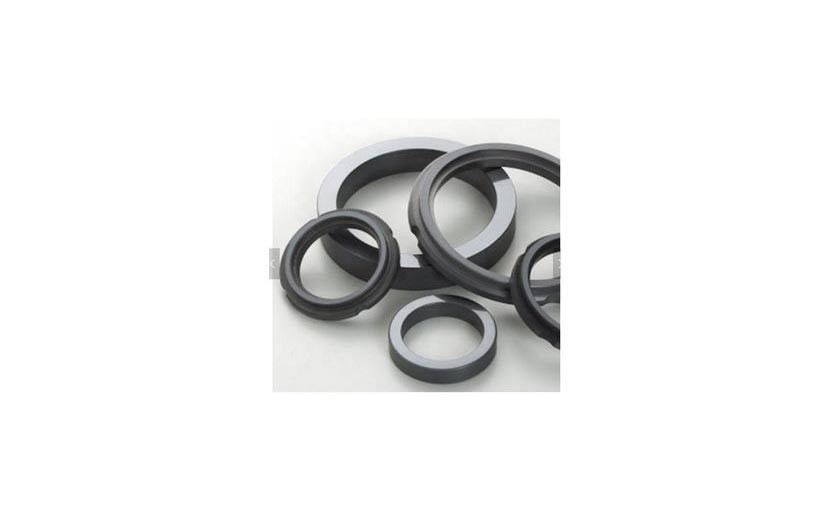

Sintered Silicone Carbide Ring

sic ring

Key Specifications/Special Features:Place of Origin: China
Material: Silicon Carbide (SiC)
Color: Black/grey
Material: Silicon Carbide Ceramics
Volume density:


Key Specifications/Special Features:

Place of Origin: China
Material: Silicon Carbide (SiC)
Color: Black/grey
Material: Silicon Carbide Ceramics
Volume density: 3.10-3.15 g/cm3
Max temperature: 1600°C
Silicon carbide content: ≥98%
Flexural Strength: ≥400 MPa
Hardness: ≥ 92 HRA
Size: Customizable
Application: Industrial Furnaces
Supply Ability: 5000000 Piece/Pieces per Month
Packaging Details: Standard exporting packing
Port of shipment: Xiamen
Lead Time :15-30days
Payment term: T/T,L/C etc.

1. Description of sintered silicon carbide:
Silicon carbide is a kind of inorganic non-metallic materials, with excellent mechanical strength and hardness, small creep deformation, good oxidation resistance, good corrosion resistance and good wear resistance, it is an ideal choice for high temperature engineering materials. Due to the outstanding properties, silicon carbide ceramic is also recognized as a mechanical sealing ring material better than metals, tungsten carbide, al2o3 ceramics and more. Moreover, it also has advantages of self-lubricating properties and low friction coefficient.

2. Kinds of Grade:
Various kinds of wear parts made in silicon carbide (SiC). Such as, seal faces, bushing/sleeves, spray nozzles ad more. Different grades of silicon Carbide are available as following:
• Reaction bonded silicon carbide (RB SiC)-a very economical material which gives excellent wear characteristics, as well as good chemical resistance.
• Sintered silicon carbide (SSiC)-the absence of free silicon makes it most resistant to chemically-aggressive fluids, and ideal for high temperature applications.
• Graphite-loaded silicon carbide-this is a composite of silicon carbide and free graphite. Graphite is added to RB SiC (RB SiC + C) or SSiC (SSiC + C), to improve tribological behavior by enhanced lubricity.
if you didn't find proper material for you please inform me your requirements.

3. Typical Properties:
* High hardness and wear resistance
* Good corrosion resistance
* Excellent mechanical strength
* Good anti-oxidation
* Good thermal shock resistance
* Low thermal expansion coefficient
* High thermal conductivity

4. Applications:
* Mechanical seal rings
* Balls, seats, liners for valve
* High temperature kiln furniture
* Heat exchangers
* Fixed and moving turbine components
